Record Search clients

Perform an advanced search of civil registration records from a trusted, external e-Gov service

The Record Search client can perform an advanced search of civil registration records. Use this to help support social protection systems, check the existence of civil registration records or check citizen demographics.

To stop abuse of such a powerful API, all results returned are audited as having been downloaded by the client. System Administrators should be careful to ensure that citizen data is not exposed to untrustworthy individuals by using this API.

All client behaviour is audited and is ultimately the personal responsibility of the National System Administrator of OpenCRVS that created the client. Protect citizen data and do not expose it unnecessarily as you may be in breach of local laws.

A daily limit of 2000 Record Search requests per client, per day is hardcoded into OpenCRVS Core. Any subsequent requests will fail.

You can use our Postman collections to test Record Search API functionality. Postman is a tool you can download to test API access before building your integrations.

Submitting a Record Search

To submit an Record Search, your client must first request an authorization token using your client_id and client_secret.

Record Search Requests

With the token as an authorization header, the following example request will submit a record search in GraphQL. GraphQL is the chosen protocol as this API re-uses the same Advanced Search GraphQL queries that are used buy the OpenCRVS GUI.

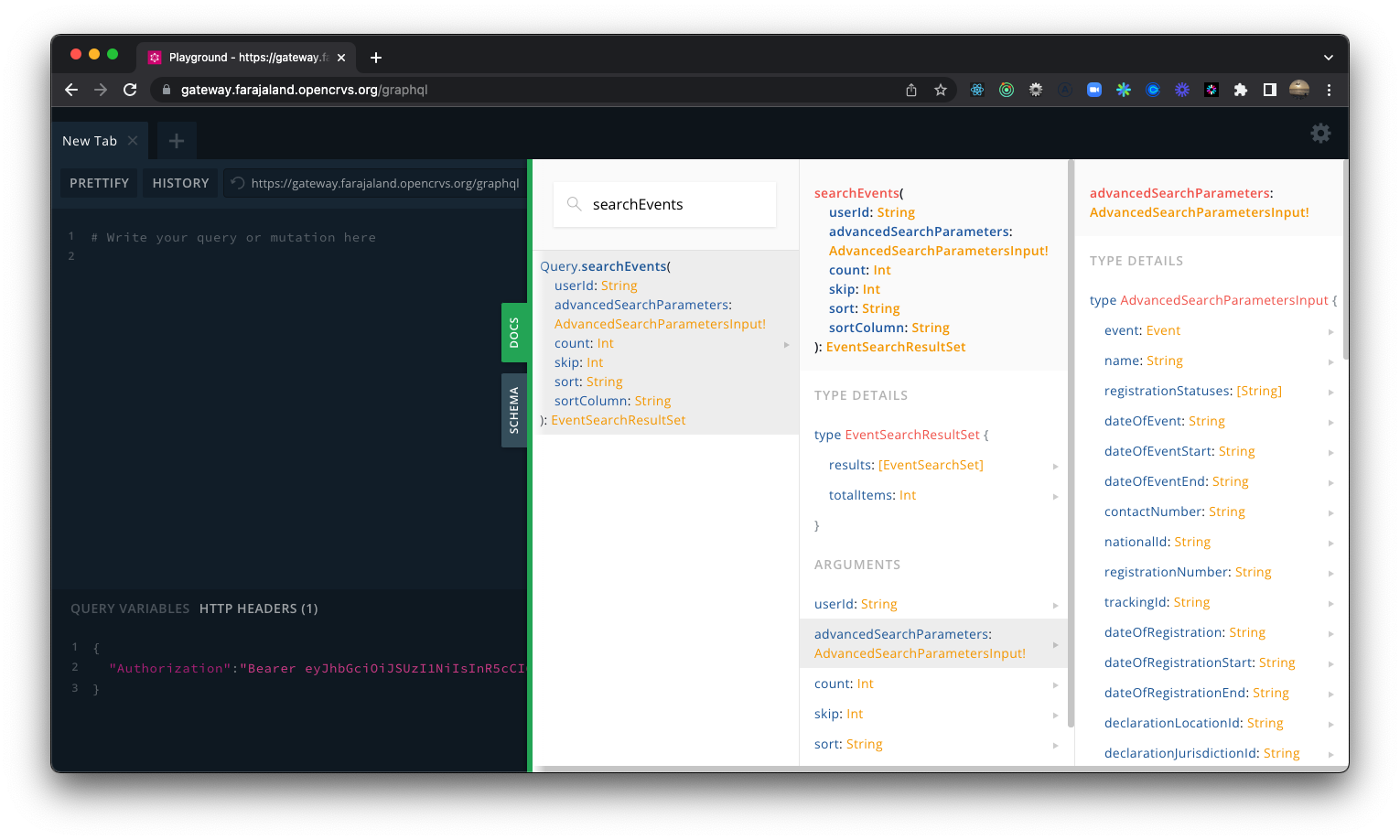

You can browse to the GraphQL Playground using an authorization header to view the full documentation for the searchEvents GraphQL query.

https://gateway.your_domain/graphql

The GraphQL parameters are explained below. A full list of available Advanced Search GraphQL variables is also explained below.

POST https://gateway.<your_domain>/graphql
Content-Type: application/json
Authorization: Bearer {{token}}

{
  "operationName": "searchEvents",
  "query": "query searchEvents($advancedSearchParameters: AdvancedSearchParametersInput!, $sort: String, $count: Int, $skip: Int) {\nsearchEvents(\n  advancedSearchParameters: $advancedSearchParameters\n  sort: $sort\n  count: $count\n  skip: $skip\n) {\n  totalItems\n  results {\n    id\n    type\n    registration {\n      status\n      contactNumber\n      trackingId\n      registrationNumber\n      registeredLocationId\n      duplicates\n      assignment {\n        userId\n        firstName\n        lastName\n        officeName\n        __typename\n      }\n      createdAt\n      modifiedAt\n      __typename\n    }\n    operationHistories {\n      operationType\n      operatedOn\n      operatorRole\n      operatorName {\n        firstNames\n        familyName\n        use\n        __typename\n      }\n      operatorOfficeName\n      operatorOfficeAlias\n      notificationFacilityName\n      notificationFacilityAlias\n      rejectReason\n      rejectComment\n      __typename\n    }\n    ... on BirthEventSearchSet {\n      dateOfBirth\n      childName {\n        firstNames\n        familyName\n        use\n        __typename\n      }\n      __typename\n    }\n    ... on DeathEventSearchSet {\n      dateOfDeath\n      deceasedName {\n        firstNames\n        familyName\n        use\n        __typename\n      }\n      __typename\n    }\n    __typename\n  }\n  __typename\n}}",
  "variables": {"advancedSearchParameters": {
      "event": "birth",
      "registrationStatuses": ["REGISTERED"],
      "childGender": "male",
      "dateOfRegistrationEnd": "2022-12-31T23:59:59.999Z",
      "dateOfRegistrationStart": "2021-11-01T00:00:00.000Z",
      "declarationJurisdictionId": "576uyegf7 .... ", // A FHIR Location ID for an admin level
      "eventLocationId": "aaabuifr87h ...", // A FHIR Location ID for a health facility where the birth or death took place
      "fatherFirstNames": "Dad",
      "motherFirstNames": "Mom"
    },
    "count": 10,
    "skip": 0
  }
}

GraphQL Parameters

Parameter Description

Parameter	Description
`operationName`	Must be "searchEvents"
`query`	Use the exhaustive GraphQL syntax supplied or remove individual return parameters if you do not require that citizen information. Protect citizen's privacy! Only request what you need.
`variables.advancedSearchParameters`	A JSON object of optional search parameters listed below
`count`	The number of records to be returned per page
`skip`	Pagination offset

operationName

Must be "searchEvents"

query

Use the exhaustive GraphQL syntax supplied or remove individual return parameters if you do not require that citizen information. Protect citizen's privacy! Only request what you need.

variables.advancedSearchParameters

A JSON object of optional search parameters listed below

count

The number of records to be returned per page

skip

Pagination offset

GraphQL variables.advancedSearchParameters object

We recommend that you use the Advanced Search feature in the OpenCRVS application and monitor the GraphQL payload that is sent to the Gateway using the Chrome Developer Tools "Network" tab, in order to understand how these parameters are formatted. The table below lists all possible parameters with a description and example where we feel further explanation is helpful.

Parameter Description Example

Parameter	Description	Example
`event`	An enum for the registration event. Can be "birth" or "death"	`birth`
`name`	A string that can be used to search ALL names.
`registrationStatuses`	An array of possible application status enums. Possible statuses	`["IN_PROGRESS", "REGISTERED"]`
`dateOfEvent`	The date of event. YYYY-MM-DD	`2022-12-31`
`recordId`	A unique uuid for the registration that forms part of the QR code URL on the certificate. Use this to validate a certificate.
`dateOfEventStart`	If you dont know the date of event, you can enter a start and end date to search within a range. YYYY-MM-DD
`dateOfEventEnd`	As above
`contactNumber`	The informant's mobile phone number with country code
`nationalId`	Any national id associated with any individual who has been involved in a registration event as a string
`registrationNumber`	An event registration number as a string
`trackingId`	An application tracking id as a string
`dateOfRegistration`	The date of registration. YYYY-MM-DD
`dateOfRegistrationStart`	If you dont know the date of registration, you can enter a start and end date to search within a range. YYYY-MM-DD
`dateOfRegistrationEnd`	As above
`declarationLocationId`	A FHIR Location uuid for the a registration office. You can search all registrations that were made in an office. You retrieve these ids using our open Location API. Your offices are customised for your country needs in this step.	`031dc5a6-ea63-47e6-a818-191cc12a9b92`
`declarationJurisdictionId`	A FHIR Location uuid for the immediate administrative level parent, such as a district or state, that the office is partOf. You can retrieve these ids using our open Location API. Your offices are customised for your country needs in this step.	`031dc5a6-ea63-47e6-a818-191cc12a9b92`
`eventLocationId`	When searching by the hospital location in which an event took place, this is a FHIR Location uuid for a facility that is already in the OpenCRVS database to track places of births or deaths in health institutions. You can retrieve these ids using our open Location API. Your health facilities are customised for your country needs in this step.	`031dc5a6-ea63-47e6-a818-191cc12a9b92`
`eventCountry`	When searching for the administrative location in which an event took place e.g. place of birth, then this is an alpha 3 country code for the country.
eventLocationLevel1	When searching for the administrative location in which an event took place e.g. place of birth, then this is a FHIR Location uuid for the locationLevel1 if applicable, technically expressed in FHIR as a "state". You can retrieve these ids using our open Location API. Your location levels are customised for your country needs in this step.	`031dc5a6-ea63-47e6-a818-191cc12a9b92`
eventLocationLevel2	When searching for the administrative location in which an event took place e.g. place of birth, then this is a FHIR Location uuid for the locationLevel2 if applicable, technically expressed in FHIR as a "district". You can retrieve these ids using our open Location API. Your location levels are customised for your country needs in this step.	`031dc5a6-ea63-47e6-a818-191cc12a9b92`
eventLocationLevel3	As above
eventLocationLevel4	As above
eventLocationLevel5	As above
childFirstNames	As above
childLastName	As above
childDoB	As above
childDoBStart	As above
childDoBEnd	As above
childGender	A string. Can be "male", "female" or "unknown"
childIdentifier	A string used to search by National ID
deceasedFirstNames	As above
deceasedFamilyName	As above
deceasedGender	A string. Can be "male", "female" or "unknown"
deceasedDoB	As above
deceasedDoBStart	As above
deceasedDoBEnd	As above
deceasedIdentifier	A string used to search by National ID
motherFirstNames	As above
motherFamilyName	As above
motherDoB	As above
motherDoBStart	As above
motherDoBEnd	As above
motherIdentifier	As above
fatherFirstNames	As above
fatherFamilyName	As above
fatherDoB	As above
fatherDoBStart	As above
fatherDoBEnd	As above
fatherIdentifier	As above
informantFirstNames	As above
informantFamilyName	As above
informantDoB	As above
informantDoBStart	As above
informantDoBEnd	As above
informantIdentifier	As above
groomDoB	As above
groomDoBStart	As above
groomDoBEnd	As above
groomIdentifier	As above
groomFirstNames	As above
groomFamilyName	As above
brideDoB	As above
brideDoBStart	As above
brideDoBEnd	As above
brideIdentifier	As above
brideFirstNames	As above
brideFamilyName	As above

event

An enum for the registration event. Can be "birth" or "death"

birth

name

A string that can be used to search ALL names.

registrationStatuses

An array of possible application status enums. Possible statuses

["IN_PROGRESS", "REGISTERED"]

dateOfEvent

The date of event. YYYY-MM-DD

2022-12-31

recordId

A unique uuid for the registration that forms part of the QR code URL on the certificate. Use this to validate a certificate.

dateOfEventStart

If you dont know the date of event, you can enter a start and end date to search within a range. YYYY-MM-DD

dateOfEventEnd

As above

contactNumber

The informant's mobile phone number with country code

nationalId

Any national id associated with any individual who has been involved in a registration event as a string

registrationNumber

An event registration number as a string

trackingId

An application tracking id as a string

dateOfRegistration

The date of registration. YYYY-MM-DD

dateOfRegistrationStart

If you dont know the date of registration, you can enter a start and end date to search within a range. YYYY-MM-DD

dateOfRegistrationEnd

As above

declarationLocationId

A FHIR Location uuid for the a registration office. You can search all registrations that were made in an office. You retrieve these ids using our open Location API. Your offices are customised for your country needs in this step.
