# How to limit location and administrative area options in event declaration
Scopes serve two purposes: keeping the system secure by granting only the necessary access, and making declarations easy and intuitive to fill in. In this example, a `HOSPITAL_CLERK` can only declare births at their own location.
[See other roles to help you configure your own.](https://github.com/opencrvs/opencrvs-core/blob/v2.1.0-beta/packages/countryconfig-template/src/data-seeding/roles/roles.ts)\
\
**Example: `HOSPITAL_CLERK`**
**Step 1: Configure the role**
```
const hospitalClerk = {
id: 'HOSPITAL_CLERK',
label: {
defaultMessage: 'Hospital Official',
description: 'Name for user role Hospital Official',
id: 'userRole.hospitalClerk'
},
scopes: defineScopes([
{ type: 'record.create', options: { placeOfEvent: 'location' } },
{ type: 'record.read', options: { placeOfEvent: 'location' } },
{ type: 'record.declare', options: { placeOfEvent: 'location' } },
{ type: 'record.notify', options: { placeOfEvent: 'location' } },
])
}
```
**Step 2: Configure the event form**
[See the full event example for context.](https://github.com/opencrvs/opencrvs-core/blob/v2.1.0-beta/packages/countryconfig-template/src/events/birth/forms/pages/child.ts)

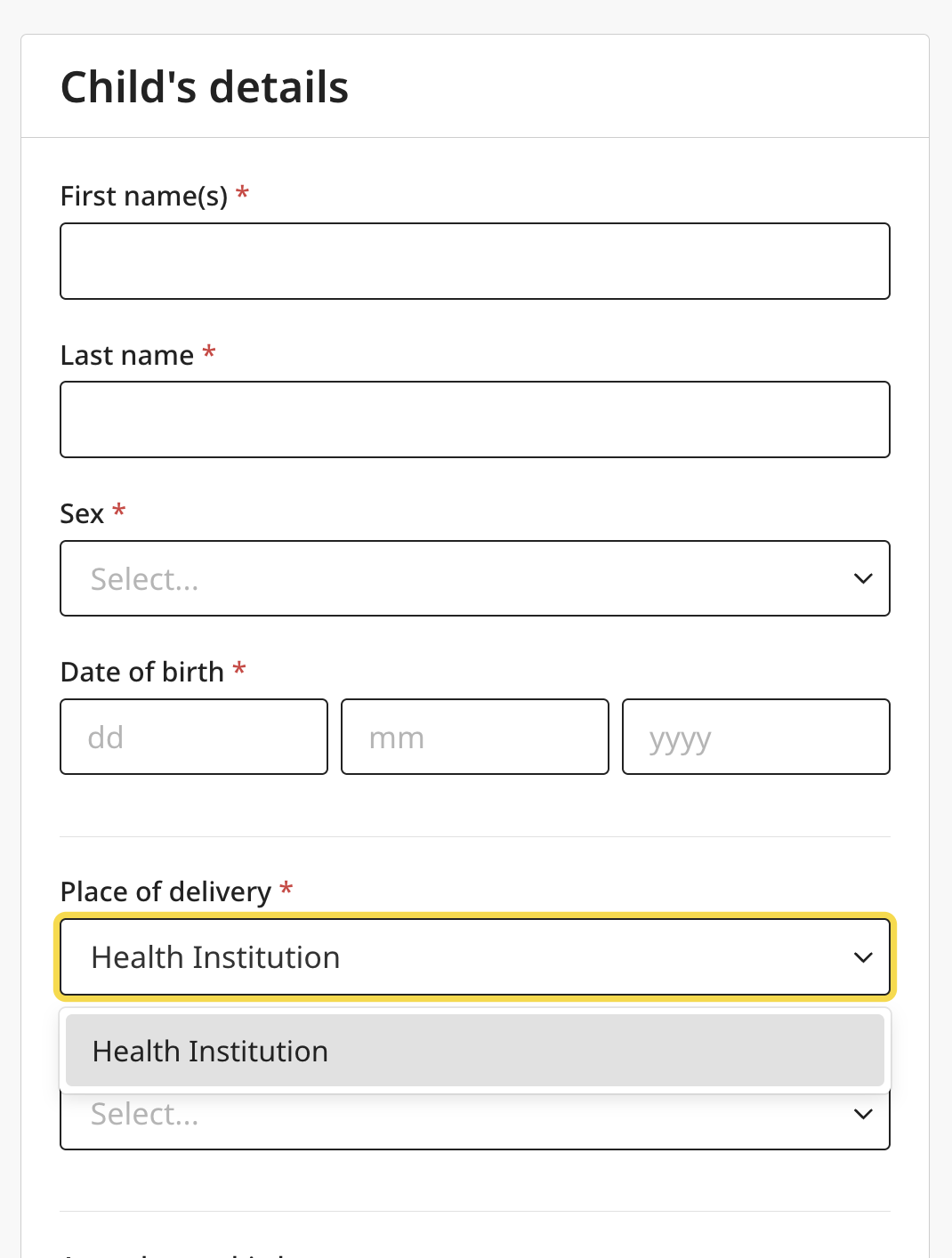

// 1. Other dropdown options are not shown for the HOSPITAL_CLERK. Only HEALTH_FACILITY is visible.
const placeOfBirthOptions = [
{
value: PlaceOfBirth.HEALTH_FACILITY,
label: placeOfBirthMessageDescriptors.HEALTH_FACILITY,
]
},
{
value: PlaceOfBirth.PRIVATE_HOME,
label: placeOfBirthMessageDescriptors.PRIVATE_HOME,
conditionals: [
{
type: ConditionalType.SHOW,
conditional: not(user.hasRole('HOSPITAL_CLERK'))
}
]
},
{
value: PlaceOfBirth.OTHER,
label: placeOfBirthMessageDescriptors.OTHER.defaultMessage,
conditionals: [
{
type: ConditionalType.SHOW,
conditional: not(user.hasRole('HOSPITAL_CLERK'))
}
]
}
] satisfies SelectOption[]
// 2. Configure select with options.
const child = {
id: 'child.placeOfBirth',
type: FieldType.SELECT,
options: placeOfBirthOptions
},
// 3. Configure
{
id: 'child.birthLocation',
type: FieldType.LOCATION,
// 4. Field is only shown when HEALTH_FACILITY is selected.
conditionals: [
{
type: ConditionalType.SHOW,
conditional: field('child.placeOfBirth').isEqualTo(
PlaceOfBirth.HEALTH_FACILITY
)
}
],
configuration: {

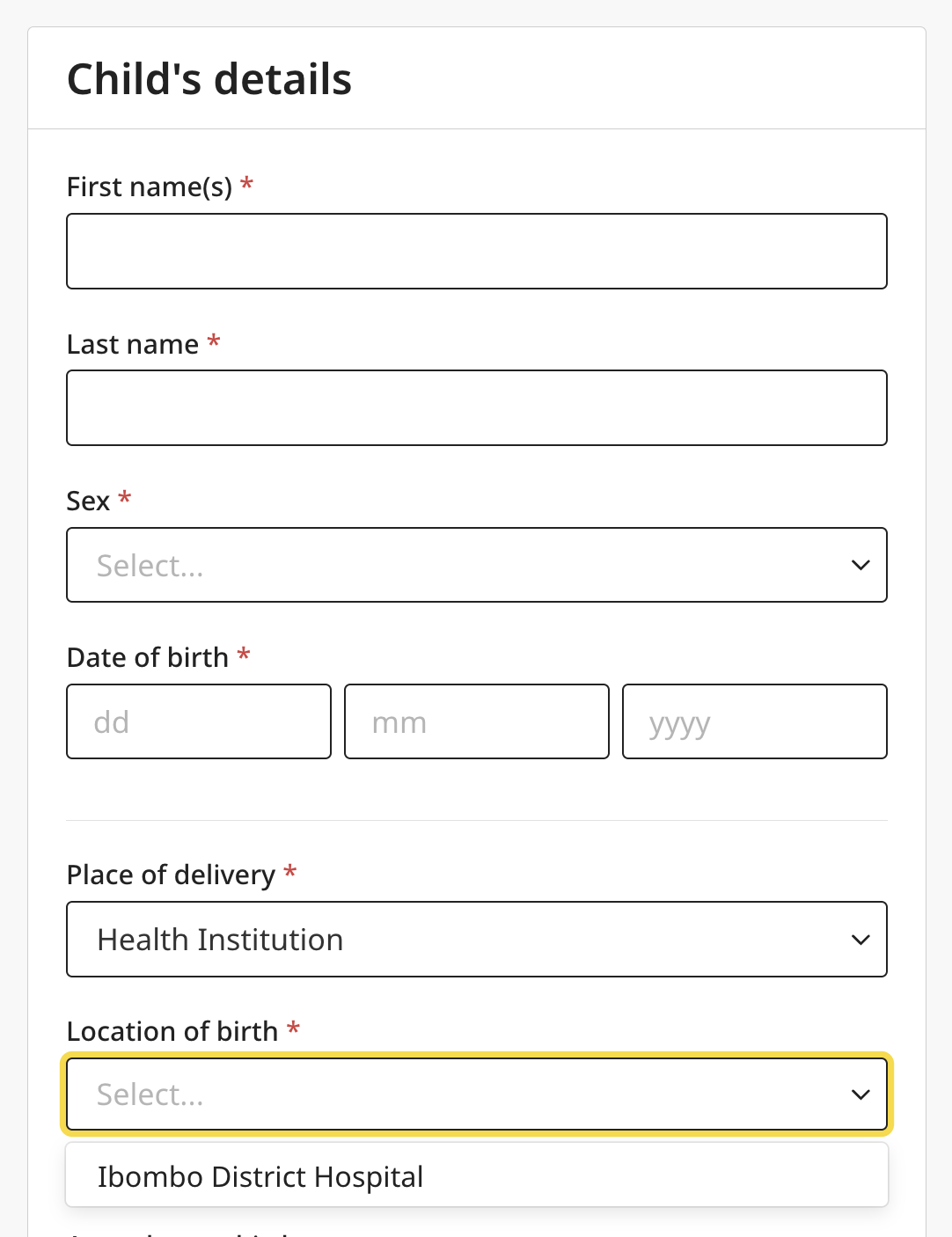

// 5. By default any type of location is included. Now we filter by "HEALTH_FACILITY" type
locationTypes: ['HEALTH_FACILITY'],
// 6. Another filter which further limits options only to what user's record.scope has.
allowedLocations: user.jurisdiction(
user.scope('record.create').attribute('placeOfEvent')
)
}
}
## Limiting options by version status and date
`LOCATION` and `ADMINISTRATIVE_AREA` fields also accept two options tied to [location versioning](/v2.1/technical/guides/configuration/administrative-hierarchy/updates-and-versioning.md). On an `ADDRESS` field, the same two options go on the address field's own `configuration` — not on its nested `fields[]` entries — and apply to its embedded admin-area selectors:
* `activeOnly` — offer only locations/areas that are active at the resolved anchor date. Inactive or not-yet-effective versions are excluded from the options, and the label shown for every remaining option is resolved at that same anchor.
* `anchorToDateOfEvent` — resolve the anchor against the event's own date of event instead of today. The date of event falls back to the record's creation date whenever it can't be read: the field is empty, holds a partial or invalid value, or the event doesn't configure a `dateOfEvent` field at all — `dateOfEvent` is optional and defaults to the creation date. On an event with no `dateOfEvent` configured, `anchorToDateOfEvent` is therefore a silent no-op: the anchor is always the creation date either way. This flag does not by itself exclude inactive versions — combine it with `activeOnly` for that.
If neither flag is set, a field lists every location or area regardless of active/inactive/future status, each labeled with its name as of today.
With `anchorToDateOfEvent` set, editing the date of event can also clear an already-picked location: whenever the selection resolves to a different version at the new anchor than it did at the old one, the field's value is cleared and the registrar must reselect. This covers the location becoming unselectable at the new date (inactive, or not yet effective) but also a plain rename with no status change — a version change always invalidates the selection, so the registrar re-confirms rather than the field silently keeping a stale pick.
The deprecated `FACILITY`/`OFFICE` field types accept both flags in their configuration but ignore `anchorToDateOfEvent` — they always anchor to today. Use `LOCATION` with `locationTypes: ['HEALTH_FACILITY']` (or `['CRVS_OFFICE']`) instead.
```
{
id: 'child.birthLocation',
type: FieldType.LOCATION,
configuration: {
locationTypes: ['HEALTH_FACILITY'],
activeOnly: true,
anchorToDateOfEvent: true
}
}
```
With both set, a birth declaration only offers health facilities that were active on the event's date of event — whichever field that event configures as its `dateOfEvent`, e.g. the child's date of birth — rather than facilities active today.
---
