9.2 Infrastructure health

Previous9.1 Application logsNext9.3 Routine monitoring checklist

OpenCRVS monitoring tools let you measure and view critical metrics such as available disk space, used memory and total CPU load. This information can be used to proactively increase the available resources when the demand increases. These metrics are collected by a tool called and stored in ElasticSearch.

Notice that these metrics are not stored indefinitely. The default installation of OpenCRVS keeps both the metric measurements and system logs only for 3 days. The rollover policy is configured in the infrastructure/monitoring/beats/rollover-policy.json file. This file can be overwritten in the country config Docker compose files

Available disk space

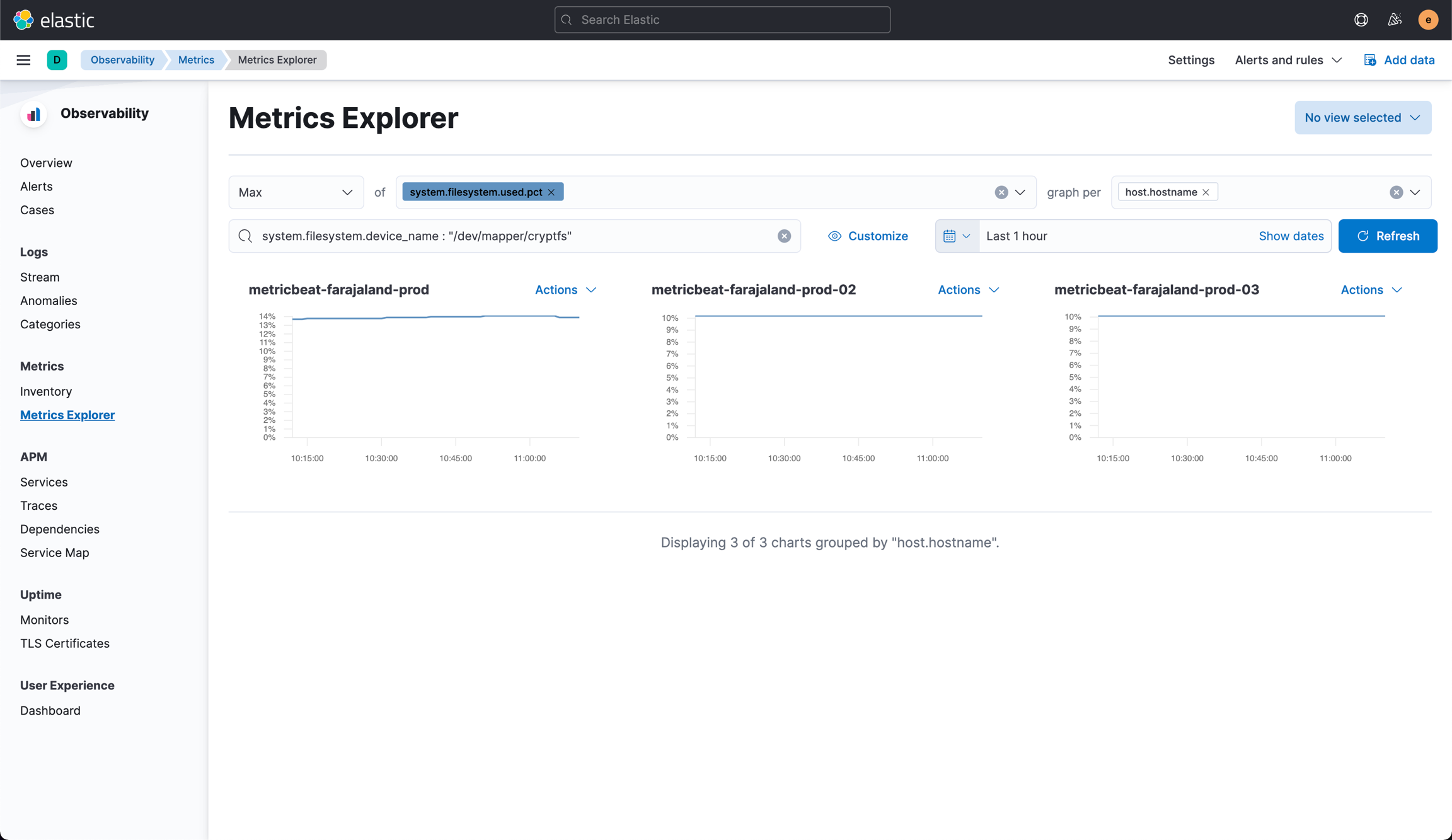

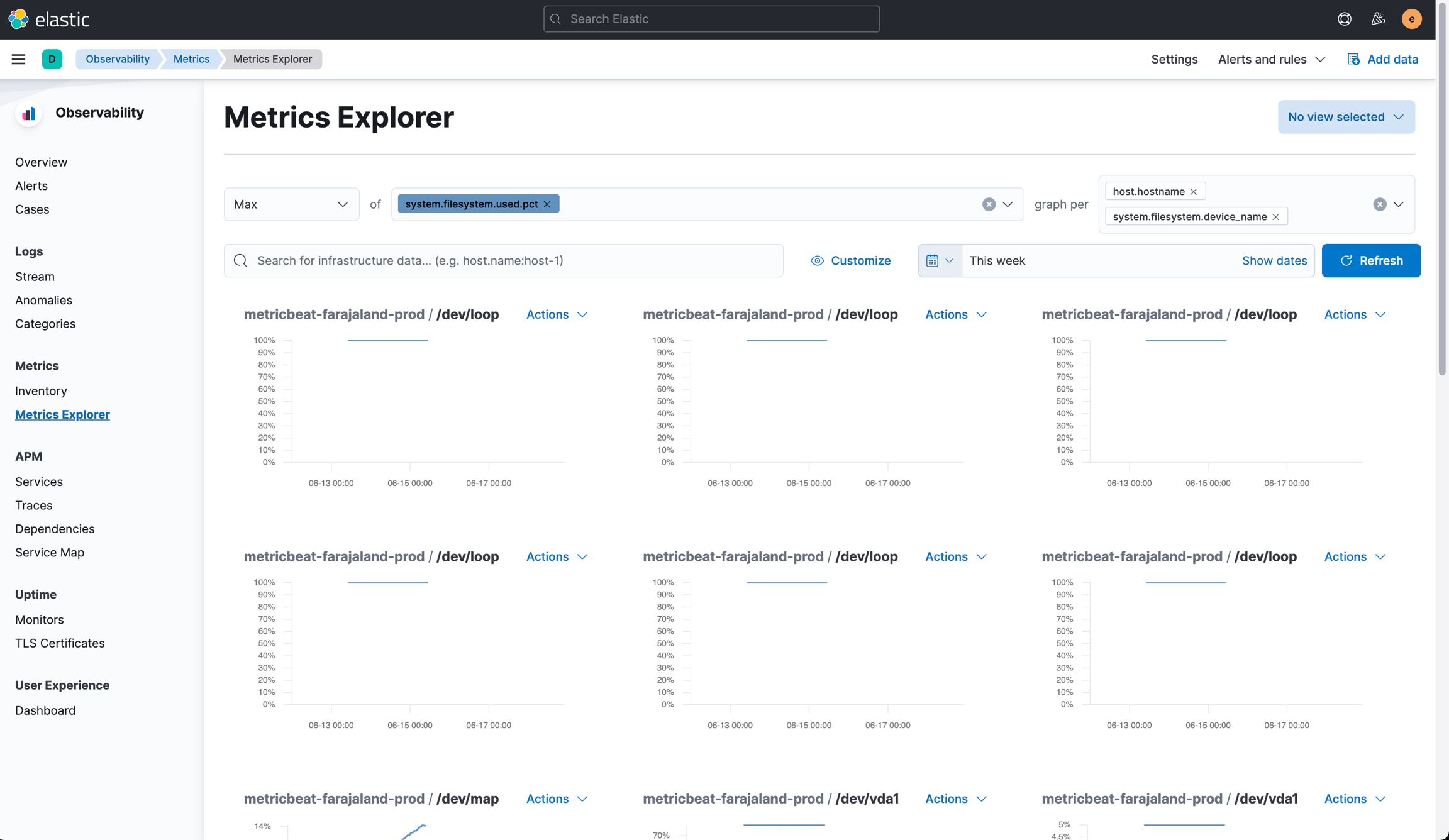

To see the amount of available disk space, navigate to Metrics Explorer (Observability -> Metrics -> Metrics Explorer). You can see the current usage of different storage devices by selecting a Max value of system.filesystem.used.pct grouped by host.hostname and system.filesystem.device_name

The default installation of OpenCRVS uses an encrypted disk for data storage on all nodes named /dev/mapper/cryptfs . You filter the listed devices to only show these disks by using the following search clause:

system.filesystem.device_name : "/dev/mapper/cryptfs"

Common infrastructure metrics

Value
Metric
Grouped by
Filtered by

Available disk space

Max

system.filesystem.used.pct

host.hostname system.filesystem.device_name

system.filesystem.device_name : "/dev/mapper/cryptfs"

CPU usage

Average

system.process.cpu.total.pct

host.hostname

Memory usage

Max

docker.memory.usage.pct

host.hostname docker.container.labels.com_docker_swarm_service_name

Read more

Host metrics
Metricbeat
