Set up Github and Dockerhub accounts
In the previous step you set up a country configuration package with a minimal example configuration.
Next, you want to commit all changes to a repo and build your countryconfig Docker image using the Github Actions and a Dockerhub account.
1. Use a GitHub Organisation
The country configuration repository should be stored into a GitHub Organisation, not a personal GitHub account.
Your organisation should:
use a Github Team or Enterprise plan (required for branch protection rules and Github Actions minutes)
grant you Administrator permissions on the repository
Using an organisation simplifies collaboration, governance and access management throughout the lifetime of the project.
2. Choose a repository name
Rename the repo to represent your own country implementation. E.G.
opencrvs-<country-name>3. Plan your branching strategy
We recommend adopting a Gitflow-style branching strategy to separate development, testing and production releases.
main (or master)
Deployment configuration
develop
Development configuration
This allows configuration changes to be developed independently, tested in the develop branch and promoted to main only when approved.
4. Define repository governance
Before development begins, configure your repository permissions.
This typically includes:
adding implementation team members
assigning code reviewers
identifying repository administrators
granting DevOps engineers appropriate deployment permissions
5. Configure branch protection
To protect your production configuration and enforce code review, configure branch protection rules for your repository.
Navigate to:
Settings → Branches → Add Branch Protection Rule
Create a protection rule for the main branch (and optionally develop) with the following recommended settings:
Require pull request reviews before merging
Require status checks to pass before merging (when CI is configured)
Require signed commits (recommended)
Restrict who can push directly to protected branches
Once configured, test the protection rules by creating and merging a test pull request.
Branch protection helps ensure that all configuration changes are reviewed, validated and traceable before they are deployed.
6. Set up an individual and an organisation account on Dockerhub
You will also need a container registry to store your country configuration Docker image. OpenCRVS is configured to use Docker Hub by default, although you can modify the infrastructure to use another container registry if preferred.
Create a Docker Hub Organisation and add all developers as members so they can publish and access images. Then create a single private repository to store your country configuration image. This repository will be accessed by both your development team and your OpenCRVS servers during deployment.
Docker Hub's free plan includes one private repository, which is sufficient for a typical OpenCRVS implementation.

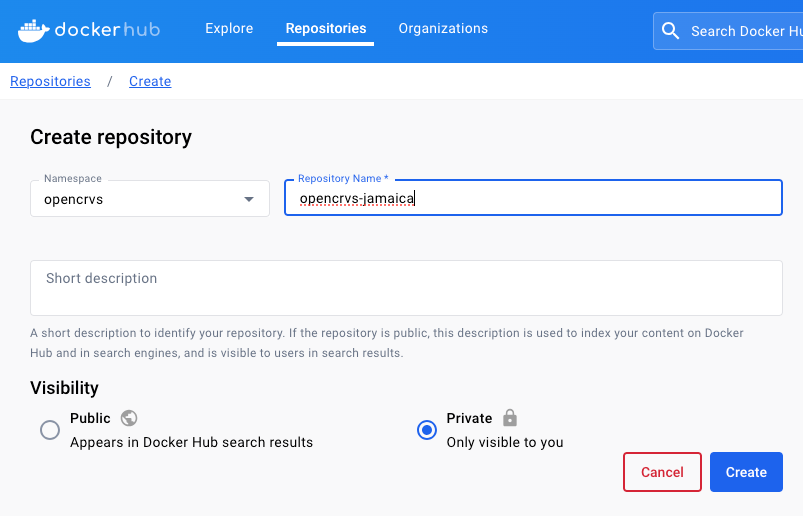

Creating a private Dockerhub repository for a countryconfig forked container:

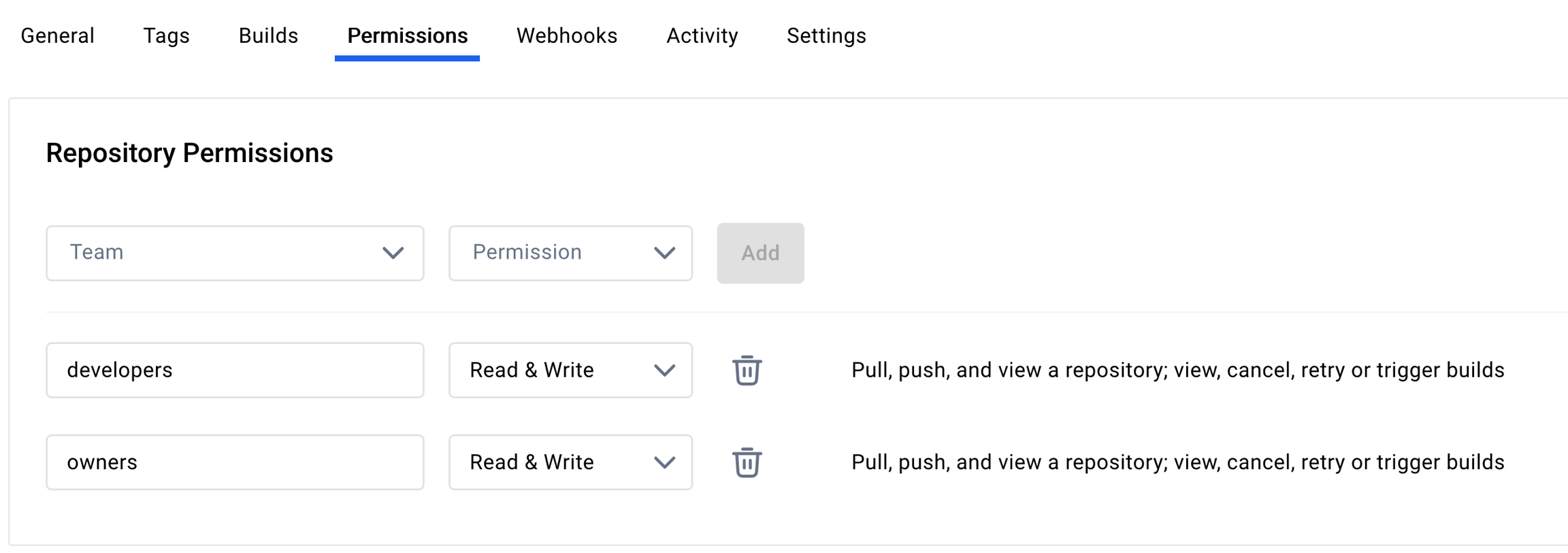

Ensure that the Dockerhub members have permissions to write to the repository:
You will need your Dockerhub username and a personal Dockerhub account access token. Our scripts use these credentials to login to Dockerhub programmatically. This is how you create a Dockerhub access token: https://docs.docker.com/security/for-developers/access-tokens/
7. Ensure your Docker image can be built successfully
When you create a Github environment, you enter these Dockerhub login values, and they are saved into Github repository secrets.
When you merge any pull request into the "main", "master" or "develop" branch, or if you explicitly run the "Publish image to Dockerhub" Gthub Action, a docker container image will be built and pushed to Dockerhub for your countryconfig microservice.
The image will automatically be tagged with the Git commit hash. You will use this hash when deploying.

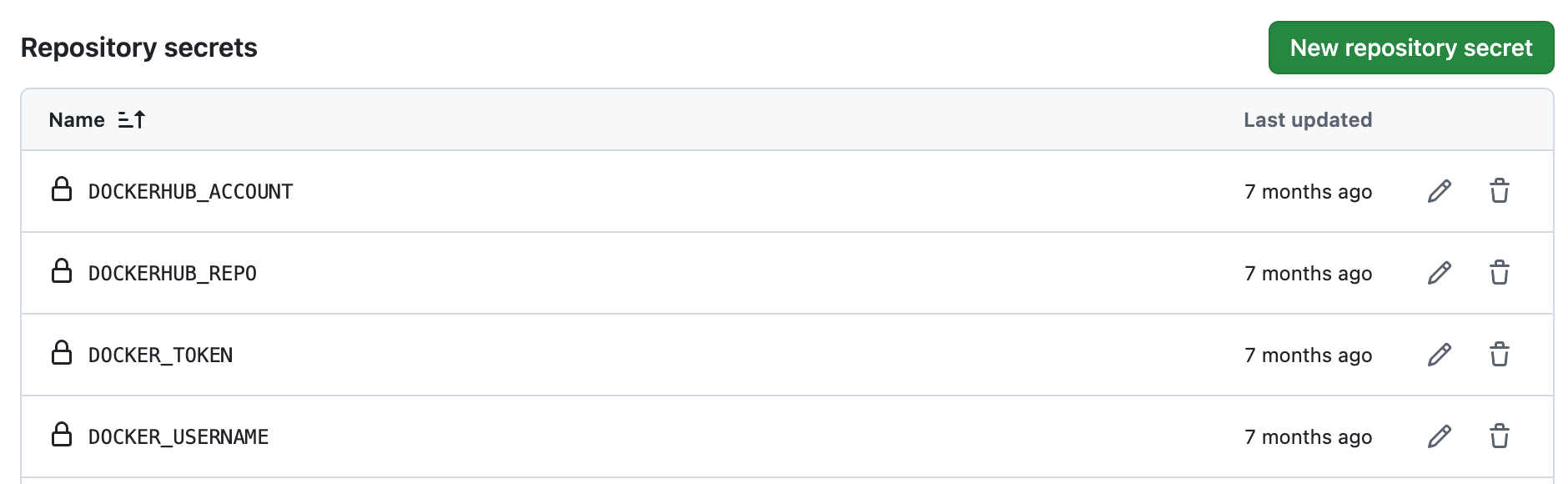

In Github repository secrets, you can also manually set the following values and the above will occur.
